Product Description

Introduction of groundnut cooking oil making machine

New generation screw oil press machine is screw-driven oil making machine that used to extract oil from seeds and kernels for edible purposes. 6YL series oil press machine is an advanced oil seed processing machine,characterized by high oil output rate,cold& hot press in one machine and one-time squeeze. It suits to used in small farmer market, supermarket, restaurant, home, laboratories in colleges etc.
The oil press machine can be used to process various oil seeds, such as rape seeds, peanut soybean,sesame,sunflower seed, copra, vegetable seeds.

All kinds of sunflower oil machinery for sale with lowest possible price and premium quality, supplied by Our Machiney - one of the best oil machine manufacturers. With great reputaions in seed oil making field, we can offer the most suitable solution for both small and full scale vegetable oil producing business. You can trust both the machinery quality and after services we offered.

Sunflower oil is extracted from sunflower seeds. It is enriched with large amount of Vitamin E and lecithin (an omega 6 fatty acid). It has low amounts of saturated fatty acids while high amounts of poly unsaturated fatty acids. Sunflower oil is a waxy crude oil and also contains small amount of oxygen acids and this badly affects the quality and storage stability of this oil. Sun flower oil has broad commercial and domestic applications especially its use in the edible food industry. This low cholesterol oil is good for immune system, prevents cancer and acts as protection against Asthma due to its anti-oxidative and anti-inflammatory properties.



High oil yield - The oil yield can be improve 2 to 3 percentage points than older equipment.
Energy saving - With same output reduces electricity power by 40%.
Labor saving - With same output can save 60% of labor, and 1 to 2 people can organize production.
Pure oil - Vacuum filtration residue to ensure the purity of oil, in line with health and quarantine standards.
Small footprint - 10-20 square meters to meet the needs.
Precision manufacturing - High alloy carbon steel, high frequency quenching and heat treatment, which improves the service life of the oil press.

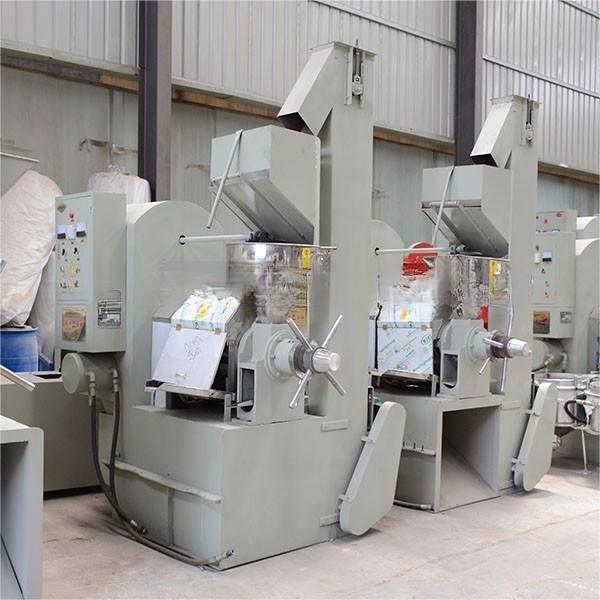

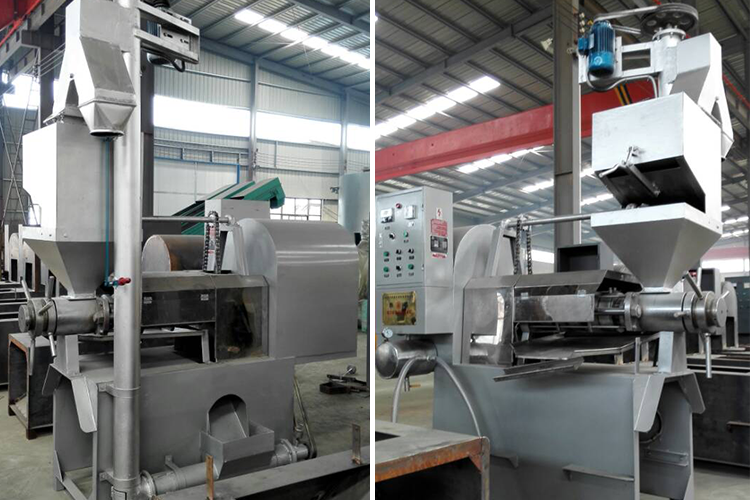

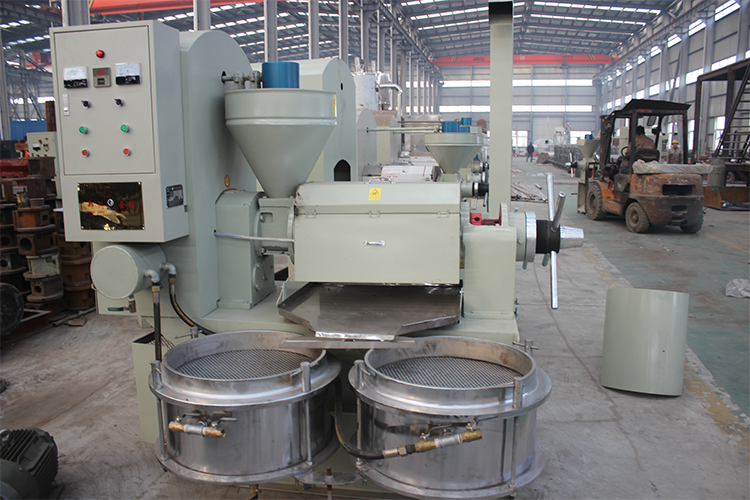

Detailed Images

Model 6YL-80 6YL-100 6YL-120 6YL-130 6YL-160
Speed of press screw(r/min) 30-40 30-40 30-40 28-40 28-40
Boundary dimension(mm) 1650*1150*1750 900*1300*1850 2200*1650*2100 2300*1600*2100 2400*1700*2100
Capacity(kg/h) 80-150 150-250 200-300 300-400 400-600
Heater(kw) 2 3 3.3 3.8 4
Residual oil rate 6-7% 6-7% 6-7% 6-7% 6-7%
Weight(kg) 680 870 1280 1420 1600
Power(KW) 5.5 7.5 11 15 380V, 18.5 KW
Vacuum pump Y90S-4-0.55KW Y90S-4-1.1KW Y100L1-4-1.5KW Y100L1-4-2.2KW Y100L1-4-2.2KW
Product condition 1 Staff ,plant 20-30㎡ 1-2 Staff ,plant 30-50㎡ 2 Staff ,
plant 40-50㎡
2-3 Staff ,plant 40-60㎡ 2-3 Staff ,plant 60-80㎡

Operating principle:

1.Material enters the extruding chamber from the hopper.
2.There is quite strong friction among press screw, chamber and the oil materials.
3.Root diameter of the pressing screw carries larger from one end to the other.
4.Last,helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil.

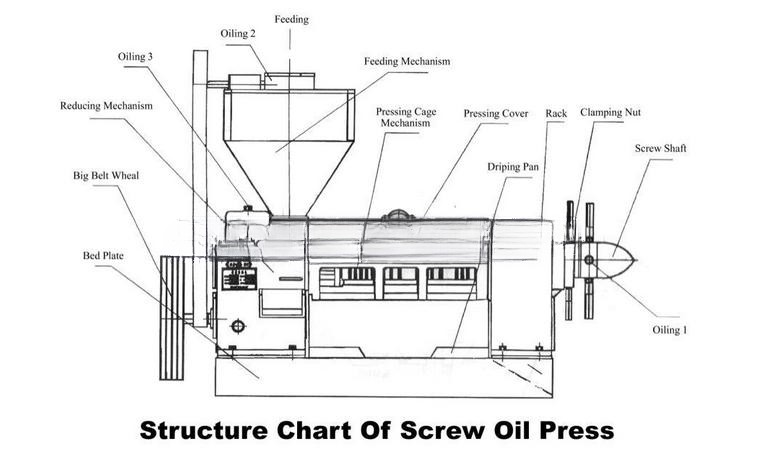

Part of oil press

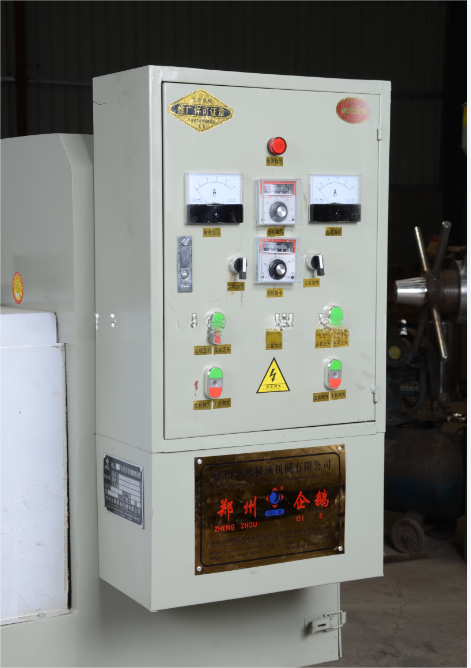

(1) Electric control box - Fully automatic control of the machine saves manpower and efficiency.
(2) Discharge hopper - Material enters from here.

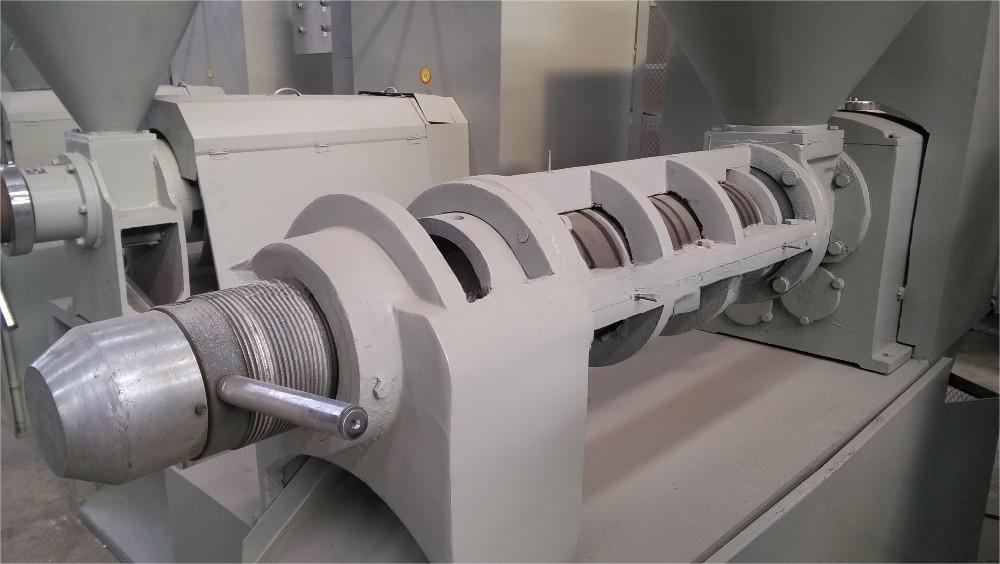

(3) Screw axis - Press the material to extract the oil from the material.

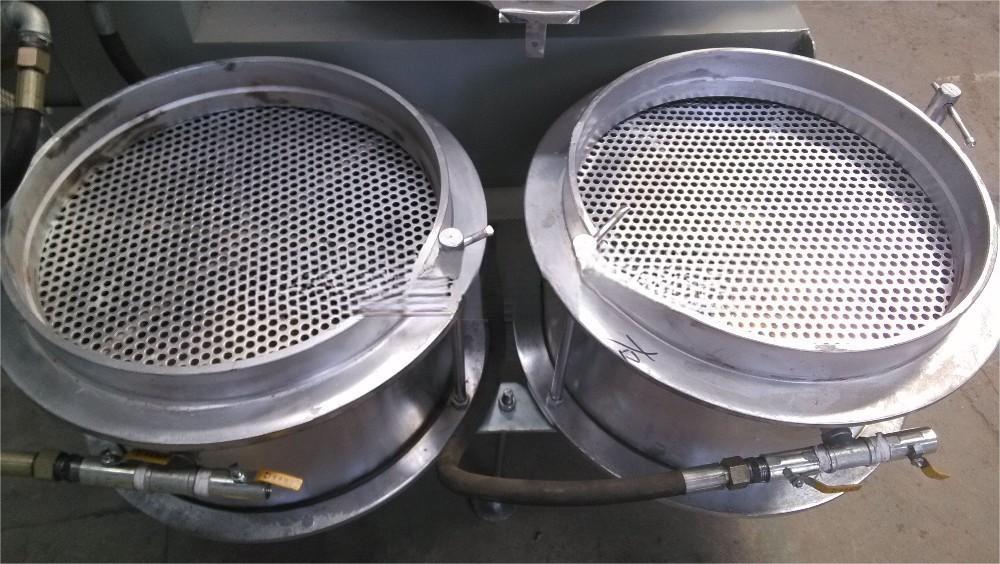

(4) Filter - Filter out impurities in the oil to improve the quality of the oil.
(5) Frame - Support the machine to ensure that the machine works properly.

Sunflower Oil Production Challenges In South Africa

In terms of challenges, maybe the most obvious one of sunflower oil manufacturing industry in South Africa is the underutilization of the processing capacity of some South African companies. By being able to optimize the production process of the seeds, essential in the oil- making the costs could be significantly lowered, resulting in lower prices for the final customer and higher competitiveness in the market. With a better sunflower oil production system, imports might also improve, generating overall more returns on investment.

Furthermore, the lack of economic empowerment in the country, the social problems which South Africa is still facing and the lack of funding for innovation in such industries are some of the major obstacles to the growth of the sunflower seed industry in the country. There is a need for rapid improvements in yield potential as well, to optimize production at minimum cost and exploiting fully the potential that sunflower seeds carry. So, how much does a manufacturing plant cost? In today's market, a small scale sunflower oil production line, about 5 ton per day or above, may cost about $7,000 or more.

One challenge which the sunflower seed oil industry has to dace is represented by the competition with the more common Palm Oil. Both imports and production of palm oil around Africa have increased in the whole continent. Despite the general perception which tends to see sunflowers not as profitable as maize, all in all, the industry of the sunflower seed oil has a lot of potential and opportunities to offer. South Africa might improve its industry by investing in better technologies and innovation since the plant is well-suited to its climate and its soils. Sunflower is effective in reducing the risk and the impact of droughts on the crops.


Q:Are you a manufacturer or a foreign trade company?
A:We are an industry and trade integrated company.

Q:What if I could not operate this product?
A:Our machine operation video and manual are for your reference. If necessary, we will send engineers to train for you personally.

Q:Can you provide more information about production and quote the best price?
A:Of course, but first we have to confirm your needs. According to your needs, we will choose the right product for your reference. When we determine one or several products, we will quote you the best price.

Q:How to place an order?
A:First send us the enquiry below, including the device name, daily production, work hours, main processing materials, etc., then our sales manager will send you the information for your reference.

Q:How long does it take to receive my product?
A:It is not yet possible to determine the time because the shipping distance and production cycle are uncertain.our business manager will recommend the appropriate transportation route for you to ensure safe and fast delivery of the goods.

Q:How is the quality of your products guaranteed?
A:After the completion of production, our quality inspection can not test the product. If you need it, we can provide third-party testing service to ensure the stable production of the equipment.

Our sevirces

Pre-sale services:

1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients;

3)Detailed technical assessment;

4)Design of process and equipment layout.


After-sale services

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;

4)Supplying spare parts with cost.

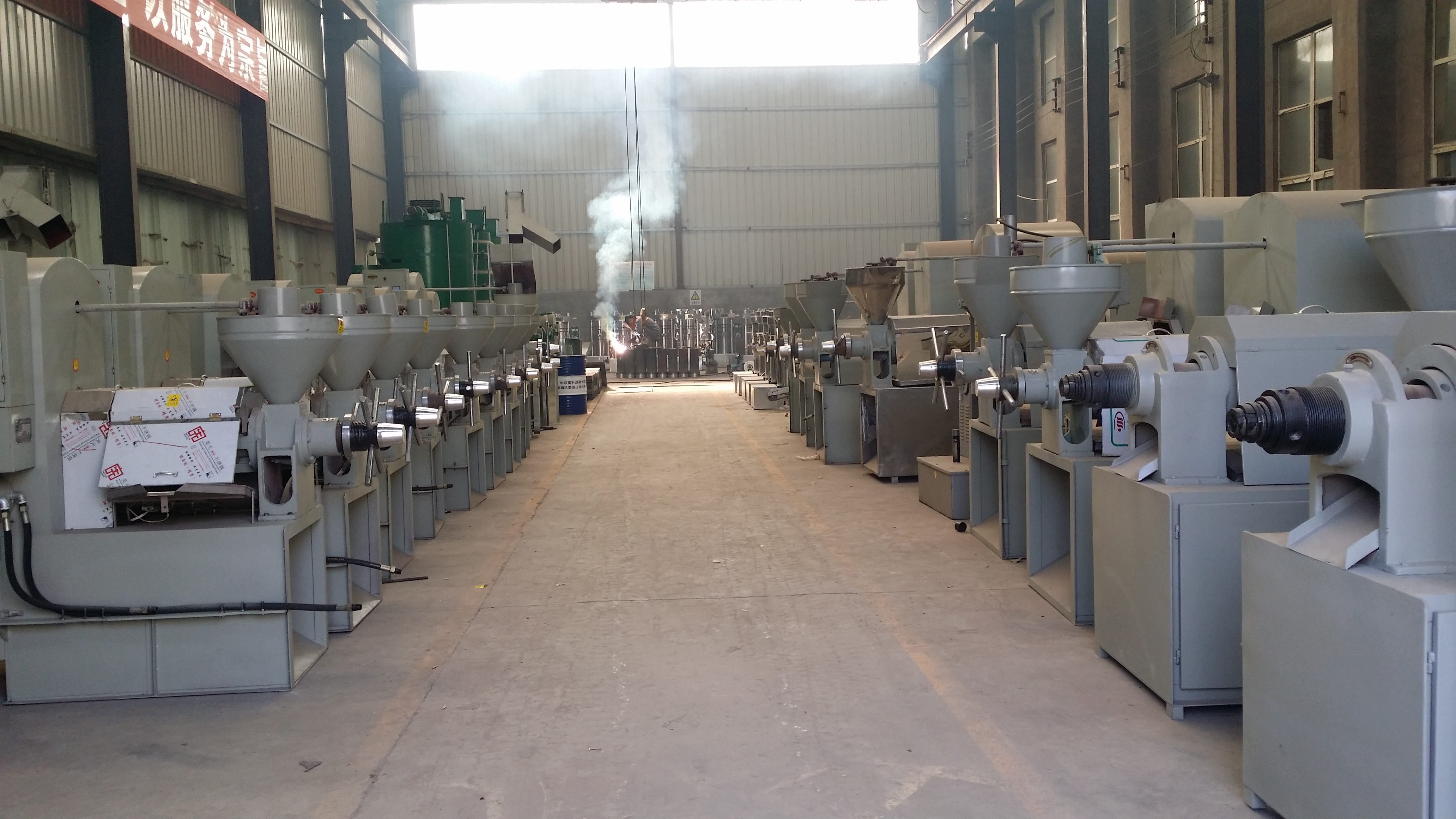

We are a large-sized joint-equity enterprise which specialize in producting edible oil mechanical equipment, corn oil making machine and it is aslo a group enterprise integrating scientific research, manufacturing,sales as one.Our oil making machine are exported to more than 30 countries,and regions such as Russia, India, South Africa, Ukraine, Nepal, Indonesia and so on.

1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.High quality products
Our sales manager will send you a production progress picture or video every day, so that you can know the production progress of the product in real time, and we accept L/C payment.

Our Customers

The production and comprehensive economic indicators lie in forefront of the same industry, with products selling all over the county and exporting to over 40 countires, such as Russia, South Africa, Ukraine, Nepal, Indonesia, Kazakhstan, Iran, Korea, Vietnamese, Pakistan, Romania, and Serbia, etc.

Regards Quality As The Company Life, Regard Customer As The God, Mutual Bnenfit And Win-Win Situation With Integrity Tenet.


Honest, Dedicated And Sincere Copperation!

Product Details
Showroom Location:
South Africa
sunflower oil
Cold & Hot Pressing Machine
Automatic Grade:
Production Capacity:
1 Year
Key Selling Points:
Marketing Type:
New Product 2020
Machinery Test Report:
Video outgoing-inspection:
Warranty of core components:
2 years
Core Components:
Motor, Pressure vessel, Pump, Gear, Bearing, Engine, Gearbox
Raw materials suitable:
Machine Material:
Stainless Steel Oil Press
Making Edible Oil
Screw Oil Expeller
Energy saving
cooking oil processing machine
High Oil Yield Efficiency
Processing Types:
cold and hot oil extraction for you choose
zhengzhou city henan province china
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
United States
After-sales Service Provided:
Free spare parts, Video technical support, Online support
