High Efficiency Sunflower Soyabean Oil Refining Machine

High Efficiency Sunflower Soyabean Oil Refining Machine

Product Description

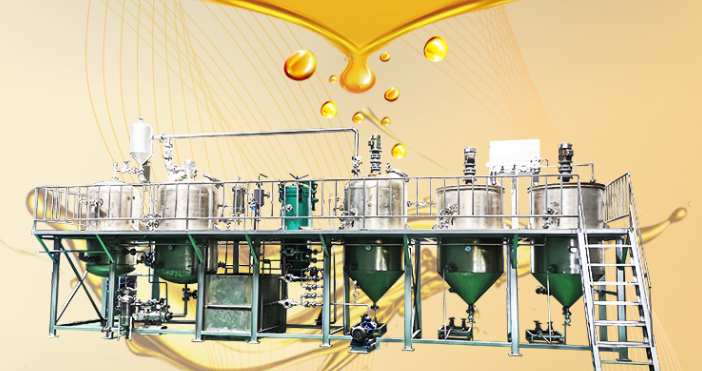

An industrial sunflower soybean oil refining machineis developed to meet the needs of various edible oil processing plants to refine sunflower seed and soybean oil and other kinds of cooking oil. Such equipment can produce fourth-grade oil, third-grade oil, second-grade oil, and first-grade oil. The daily processing capacity of the sunflower oil refinery machine reaches 100 kg to 10 tons or more. The sunflower soybeanoil refinery machines can be divided into intermittent and continuous types to meet the needs of different users. The oil refining equipment developed by our company has the characteristics of reliable performance, a high degree of mechanization, and advanced process and technical indicators. This sunflower oil refining equipment can be used for multiple purposes, producing different grades of cooking oil of various kinds, including sunflower seed oil, peanut oil, palm oil, soybean oil, rapeseed oil, corn oil, cottonseed oil, etc.

High Efficiency Sunflower Soyabean Palm Oil Refining Machine

High Efficiency Sunflower Soyabean Palm Oil Refining Machine

sunflower soybean oil refining process

Sunflower soybean oil refining methods can be roughly divided into the mechanical method, chemical method, and physicochemical method. The operation of the sunflower soybean oil refining machine is divided into the following four steps.

1. Degumming: if the content of phospholipids in the sunflower seed oil is high, it is easy to blister, produce smoke, and smell when heated. The phospholipids oxidized at high temperature turns the oil scorch brown, which affects the flavor of fried food. Degumming is based on the principle that phospholipids and some proteins are insoluble in oil after forming hydrate with water. By adding hot water to the crude sunflower seed oil, mixing and heating at 50℃, the phospholipids and some proteins can be removed after static stratification.

2. Deacidification: free fatty acids affect the stability and flavor of sunflower seed oil. They can be removed by neutralization with alkali solution.

3. Decolorization: crude sunflower seed oil contains pigments such as chlorophyll and carotenoids. Chlorophyll is a photosensitizer, which affects the stability of the oil, while other pigments affect the appearance of oil, which can be removed by the adsorbent.

4. Deodorization: there are some peculiar smell substances in crude sunflower seed oil, mainly from oil oxidation products. Such gases can be removed by distillation and vacuum pumping.

5. Dewaxing: remove the wax in the sunflower seed oil.

The first-grade and second-grade sunflower soybean oil generally need to go through 5 procedures: degumming, deacidification, decolorization, deodorization, or dewaxing, while the third and fourth-grade oil does not need to go through deodorization and dewaxing.

Product parameters

Model ZY-112 ZY-113 ZY-115
Heating Power 3*2 6*3 9*3
Air pump power 1.1Kw 1.1Kw 1.1Kw
Capacity 1t/day 2t-5t/day
Mixing tanker 1unit 2unit 3unit
Voltage 380V 3 phase 380V 3 phase 380V 3 phase
Weight 500kg 800kg 1600kg
Size 3100*850*2500mm 4500*900*2500mm 6000*2000*2500mm
