Presse à huile à vis 6yl/presse à huile de tournesol Machines en France
| Numéro de modèle: | HT--CDPM |
|---|---|
| Capacité de production: | 90 % |
| Tension: | 380 V |
| Puissance (W): | 105 |
| Poids: | 20T |
| Dimension (L*W*H): | selon les besoins en capacité |

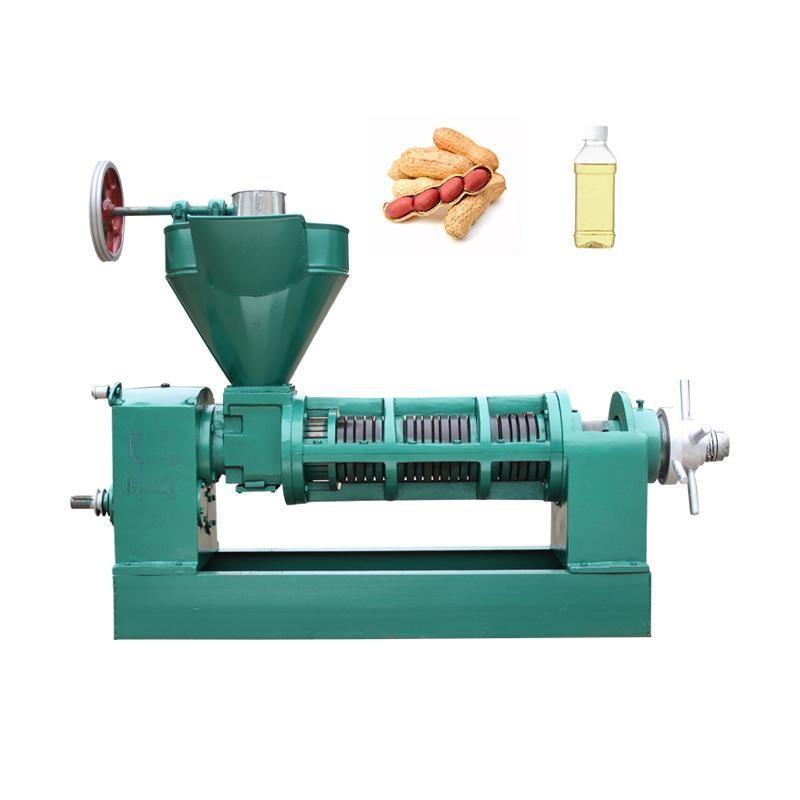

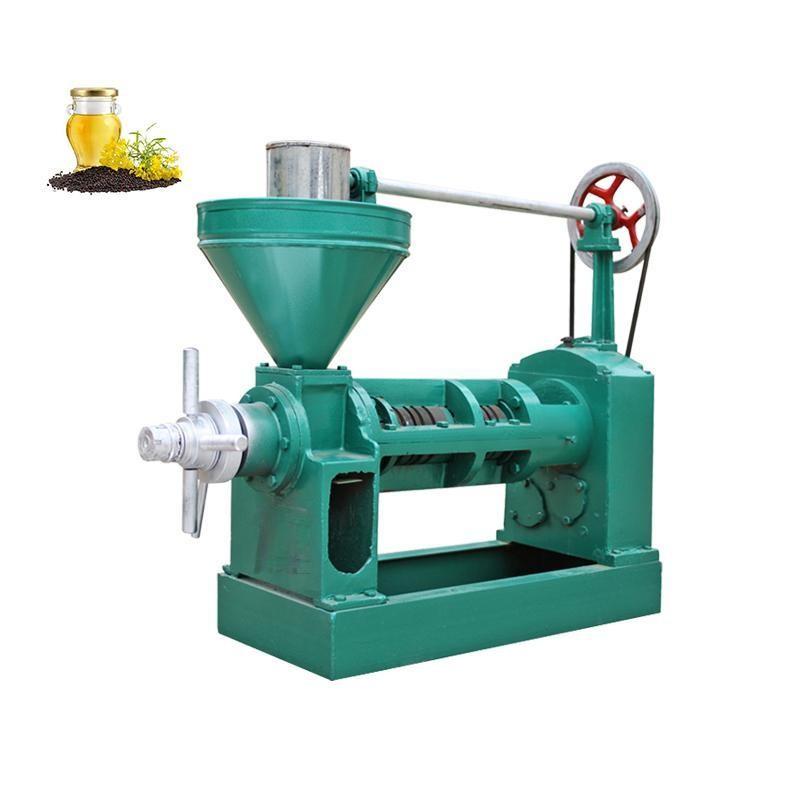

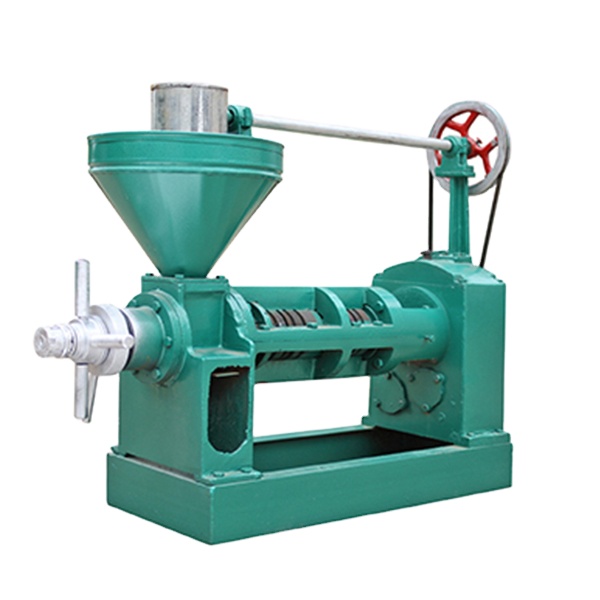

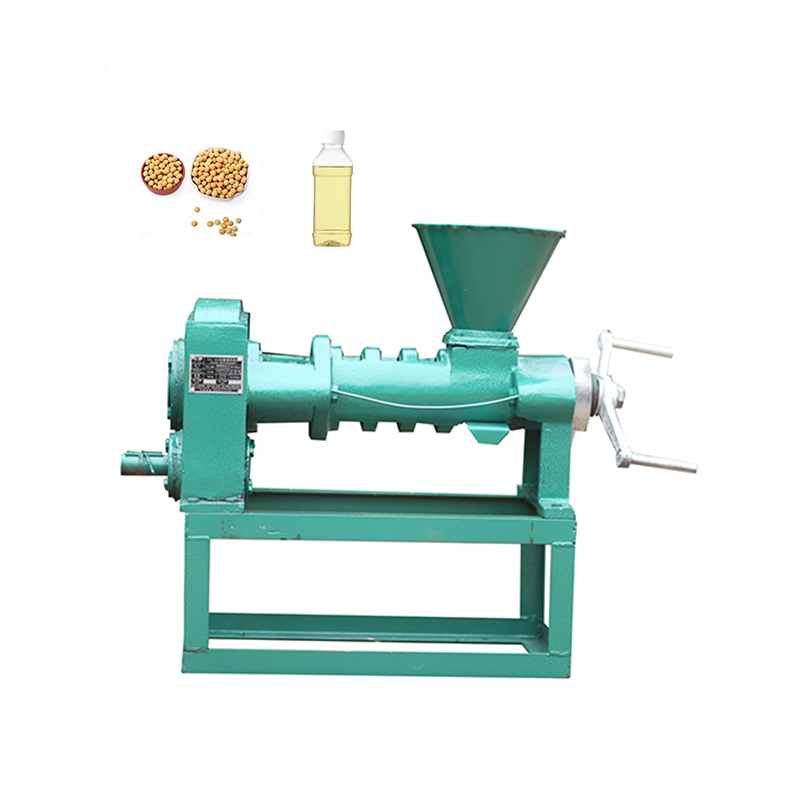

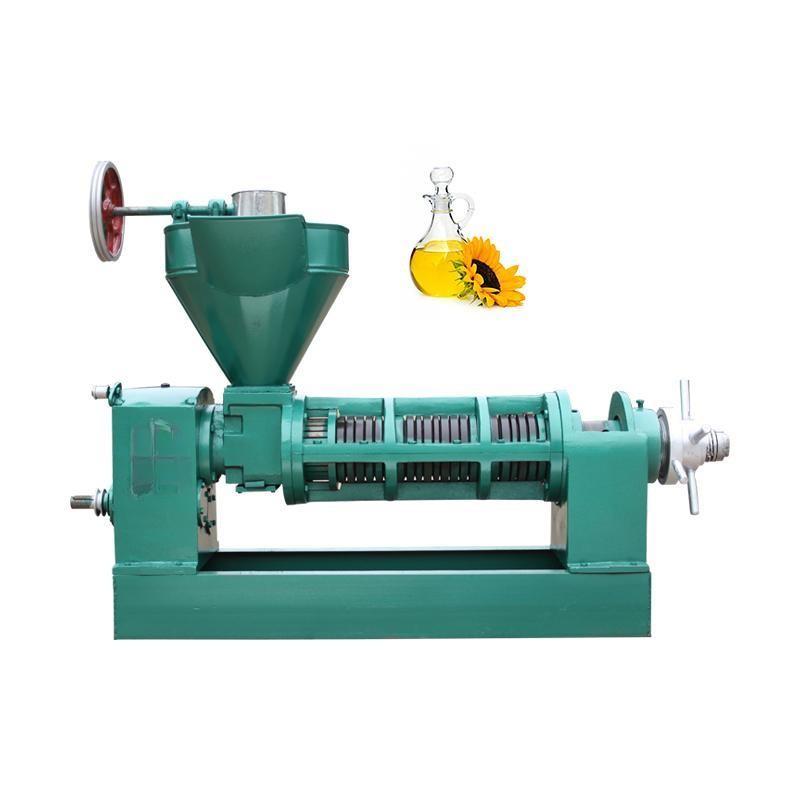

6YL series screw oil press machine boasts strong pressing structure and automatic heating system for highest oil output. Different from traditional small oil screw press, 6YL adds an automatic heater to increase the oil output rate by hot extrusion. This automatic oil press machine is ideal for vegetable oil making, from small oil pressing workshops to large-scale oil extrusion factory.
Main advantage of screw oil press machine:
1. High oil yield, small space occupied and low expense on equipment and electriciy.
2. Multi-functional used for pressing various of oil crops.
3. Simple operation and stable production performance.
4. Various machine models for options according to the capacity.
5. Widely used by small workshop and factories and hot selling at home and abroad.
Screw Oil Presser Working principle:
When the oil press is running, the processed material embryo enters the squeezing chamber from the hopper. The helix of the squeezed screw is pushed in and squeezed. The material embryo is carried out in the pressing chamber of the oil press. Under the condition of high pressure, there is a great friction resistance between the material embryo and the squeezing and squeezing chamber. The heat caused by the heat caused the thermal denaturation of the protein in the embryo, destroyed the colloid, increased the plasticity, and also reduced the viscosity of the oil and thus precipitated oil easily. The oil production rate of the oil press is improved.
Product Details
Main parts of oil press machine
Name: Gear box
It is composed of gear box, cover, cyclinder gear, driving axis, rolling bearing and triangle belt wheel, etc. Oil can be added when the oil adding screw on top of the gear box is discharged. Likewise, oil can be released when the oil release screw on the bottom removed.
Machine parts
Name: oil cake discharge structure.
The discharge structure of oil cake, which is hard and?corrosion resistance.
Machine Parts
Name: Screw axis
It is composed of screw axis, pressing screw, cake guide ring, press nut, adjusting bolt and planar bearing, etc.
Other details display
Product Parameters
| Model | Capacity | Power(W) | Voltage | Packing?size | Gross weight and net?weight?(KG) |
| 6YL-68 | 40-50Kg/h | 5.5KW | 380V/50HZ/Triple phase | 880*440*770 | 160/140 |
| 6YL-80 | 80-150Kg/h | 5.5KW | 380V/50HZ/Triple phase | 1510*440*700 | 350/330 |
| 6YL-95/100 | 150-200Kg/h | 7.5KW | 380V/50HZ/Triple phase | 1910*550*765 | 450/420 |
| 6YL-120 | 200-300Kg/h | 11KW | 380V/50HZ/Triple phase | 2100*630*770 | 530/500 |
| 6YL-130 | 300-400Kg/h | 15KW | 380V/50HZ/Triple phase | 2280*700*780 | 780/750 |
| 6YL-160 | 400-600Kg/h | 18.5KW | 380V/50HZ/Triple phase | 2050*600*850 | 950/900 |
Applications
Although 6YL Screw oil press machine is small in size, it boasts superior oil making capacity.It can be used for various materials such as Peanuts, Rape seeds, Sesame seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds, Black seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts, Walnuts,etc.
Packing & Delivery
| Packing | ||
| Size | To be determined | |
| Weight | Depend on different capacity equipment | |
| Packaging Details | The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request. | |
| Delivery | ||
| Tool | Ship, express or Air | |
| Packing | In containers | |
| Shipping Details | The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you. |
|
FAQ
Q1:?What?is?the?Warranty?for?the?machines?
A1:?12?months?free?guanantee?and?life?long?standard?paid?service.
Q2:?What?is?the?Material?
A2:?Carbon?steel?suitable?for?pressing.
Q3:?When?can?I?get?the?price?
A3:?Within?24?hours,?if?urgent,?please?directly?call?us.
Q4:?Whether?the?machine?price?can?be?more?discount?
A4:?In?general,?our?MOQ?is?1set?with?very?reasonable?price,?but?if?large?order,?we?also?can?apply?to?our?manager?to?appropriately?give?you?a?little?discount.
Q5:?How?long?will?it?take?to?receive?my?products?
A5:?Generally,?it?will?take?about?5?days?to?make?the?machinery,?3-7?days?to?deliver?it?to
shipping?port,?and?10-45?days?on?sea?transporting.
Q6:?Is?the?machine?suitable?for?different?raw?material??
A6:?Yes,?but?we?recommend?no?more?than?3?different?types.
